VESDA-E VEA

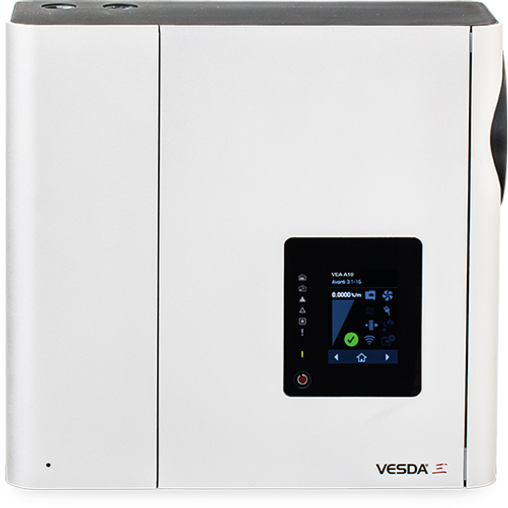

VESDA-E VEA Aspirating Smoke Detector - Minimum Disruption with Centralized Test and Maintenance

Managing multiple smoke detectors in large, busy buildings such as hospitals, prisons, or hotels, can be a challenge. Testing and maintaining smoke detectors in such settings, especially those with restricted areas, can be time consuming and disrupt critical operations.

Xtralis VESDA-E VEA Addressable Aspirating Smoke Detection combines assured detection with the unique value of centralized test and maintenance reducing the time, cost and impact of ongoing upkeep.

Model Nos. VEA-040-A00, VEA-040-A10
Download VESDA-E VEA Product Brochure VESDA-E VEA Product Brochure

How to Optimize Smoke Detection and Minimize Disruption in Large, Busy Buildings Guide

OPTIMIZE SMOKE DETECTION AND MINIMIZE DISRUPTION IN LARGE, BUSY BUILDINGS

Download this e-guide to learn what challenges buildings with multiple floors and rooms present to smoke detection and how to overcome them by leveraging addressable, aspirating smoke detection with centralized test and maintenance. The Guide will look at:

  • How to identify the risks restricted areas present when it comes to smoke detection, and the installation and maintenance of the detectors
  • How to address these challenges with point addressable smoke detection technology
  • How to leverage centralized testing and maintenance to minimize disruption to daily operation
  • How the technology can be deployed successfully in a range of facilities, from healthcare to residential buildings, minimizing disruption and enhancing safety

GET THE GUIDE

To download the How to Guide, please select your region.

Central Diagnostics Success Story

MEDICAL CENTER PROTECTS HIGH-TECH EQUIPMENT AND STAFF WITH VESDA-E VEA

Find out how a medical clinic deployed next-generation addressable, aspirating smoke detection technology to protect valuable specialist equipment and optimize the safety of staff and patients.

READ SUCCESS STORY



Corcoran State Prison Success Story

CORCORAN STATE PRISON OPTIMIZES SMOKE DETECTION ACCURACY

Learn how two correctional facilities in California overcame challenges associated with costly and disruptive false alarms by leveraging Xtralis’ innovative aspirating, point-addressable smoke detection technology.

READ SUCCESS STORY




How to Optimize Smoke Detection and Minimize Disruption in Large, Busy Buildings Guide

OPTIMIZE SMOKE DETECTION AND MINIMIZE DISRUPTION IN LARGE, BUSY BUILDINGS

Learn what challenges buildings with multiple floors and rooms present to smoke detection and how to overcome them by leveraging addressable, aspirating smoke detection with centralized test and maintenance. The Guide will look at:

  • How to identify the risks restricted areas present when it comes to smoke detection, and the installation and maintenance of the detectors
  • How to address these challenges with point addressable smoke detection technology
  • How to leverage centralized testing and maintenance to minimize disruption to daily operation
  • How the technology can be deployed successfully in a range of facilities, from healthcare to residential buildings, minimizing disruption and enhancing safety

GET THE GUIDE

To download the How to Guide, please select your region.



Central Diagnostics Success Story

MEDICAL CENTER PROTECTS HIGH-TECH EQUIPMENT AND STAFF WITH VESDA-E VEA

Find out how a medical clinic deployed next-generation addressable, aspirating smoke detection technology to protect valuable specialist equipment and optimize the safety of staff and patients.

READ SUCCESS STORY


Corcoran State Prison Success Story

CORCORAN STATE PRISON OPTIMIZES SMOKE DETECTION ACCURACY

Learn how two correctional facilities in California overcame challenges associated with costly and disruptive false alarms by leveraging Xtralis’ innovative aspirating, point-addressable smoke detection technology.

READ SUCCESS STORY

FEATURES
APPLICATIONS
CERTIFICATIONS
ACCESSORIES
SERVICE & SUPPORT
  • Pinpoint addressability
  • 40 addressable microbore tubes with individual sampling points
  • Assured detection with end to end system integrity monitoring
  • Interruption-free business operation with centralised testing and maintenance
  • Single sampling point or single tube blockage detection at set intervals
  • Automatic sampling point presence and tube breakage detection at set intervals
  • Automatic sampling point cleaning at set intervals
  • Three sensitivity settings for the sampling points
  • Variable length capillary tubes, up to 100 m (328 ft)
  • Laser-based absolute smoke detection
  • Coarse particle filtering and clean air barrier for optics protection
  • Reliable linear pump technology
  • LEDs for alarm and fault signalling
  • 3.5” colour touch screen for status review
  • Seven programmable relays
  • Two GPIs, monitored and unmonitored
  • Xtralis VSC and VSM4 PC software support
  • iVESDA application for system monitoring on mobile devices
  • IP 40 enclosure (not UL tested)
  • Easy mounting with steel support bracket
  • Field replaceable filter, smoke sensor module, pump and rotary valve
  • VESDAnet networking
  • Ethernet 100BASE-T
  • WiFi, 802.11 b/g/n
  • Local host-mode USB port
  • Easy cable termination access
  • Event Log (20,000 events)

FEATURES
  • Pinpoint addressability
  • 40 addressable microbore tubes with individual sampling points
  • Assured detection with end to end system integrity monitoring
  • Interruption-free business operation with centralised testing and maintenance
  • Single sampling point or single tube blockage detection at set intervals
  • Automatic sampling point presence and tube breakage detection at set intervals
  • Automatic sampling point cleaning at set intervals
  • Three sensitivity settings for the sampling points
  • Variable length capillary tubes, up to 100 m (328 ft)
  • Laser-based absolute smoke detection
  • Coarse particle filtering and clean air barrier for optics protection
  • Reliable linear pump technology
  • LEDs for alarm and fault signalling
  • 3.5” colour touch screen for status review
  • Seven programmable relays
  • Two GPIs, monitored and unmonitored
  • Xtralis VSC and VSM4 PC software support
  • iVESDA application for system monitoring on mobile devices
  • IP 40 enclosure (not UL tested)
  • Easy mounting with steel support bracket
  • Field replaceable filter, smoke sensor module, pump and rotary valve
  • VESDAnet networking
  • Ethernet 100BASE-T
  • WiFi, 802.11 b/g/n
  • Local host-mode USB port
  • Easy cable termination access
  • Event Log (20,000 events)
APPLICATIONS

As a multi-channel addressable system, the VEA detector is able to divide a protected space into sampling locations, enabling the localization of potential sources of fire for faster incident response. The detectors are suitable for protection of areas where pinpoint location of fire events is essential, thus providing ideal fire detection solutions:

  • Offices
  • Hospitals
  • Schools
  • Prisons
  • Multi-story dwellings
  • Data Centers
  • Warehouses
CERTIFICATIONS
  • UL
  • ULC
  • FDA
  • VdS (EN54-20)
  • AFNOR
  • CE
  • UKCA
  • CSFM
  • FM
  • ActivFire (ISO 7240-20)
  • BOMBA
  • RCM
  • CCCF

DoP available for download here.

ACCESSORIES
Xtralis Test Transformer
Xtralis Test Transformer
F-PC
ASD Sampling Hole Clips
VESDA-E VEA Tubes - Fittings
VESDA-E VEA Tubes & Fittings
Refrigerated Storage Sampling Kit
Refrigerated Storage Sampling Kit
Tamper Proof Sampling Point
Tamper Proof Sampling Point
Flush Mount Sampling Point
Flush Mount Sampling Point
VEA Sampling Points
VEA Sampling Points
VESDA-E Power Supply
VESDA-E Power Supply
VESDA-E VEA 40-Relay Local StaX
VESDA-E VEA 40-Relay Local StaX
Xtralis In-Line Filter
Xtralis In-Line Filter
Automatic Purging Unit
Automatic Purging Unit
VESDA HLI
VESDA High Level Interface (HLI)
VESDA Remote Display Module
VESDA Remote Display Module
VESDA 19 Subrack
VESDA 19" Sub Rack
VESDA LCD Programmer
VESDA LCD Programmer
Scorpion Smoke Detector Test System
Scorpion Smoke Detector Test System
Smoke Pen
Smoke Pen
SERVICE & SUPPORT

Please visit the Document Library for access to software, manuals, engineering specifications, application notes and other technical support documents.

RESOURCES

Download Product Warranty (as of 07 Nov. 2022) Product Warranty (as of 07 Nov. 2022)
Download VESDA-E VEA Data Sheet VESDA-E VEA Data Sheet
Download VESDA-E VEA-040-A00 Product Guide VESDA-E VEA-040-A00 Product Guide
Download VESDA-E VEA-040-A10 Product Guide VESDA-E VEA-040-A10 Product Guide
Download VESDA-E VEA Engineering Specifications VESDA-E VEA Engineering Specifications
Download VESDA-E VEA Installation Sheet VESDA-E VEA Installation Sheet
Download VESDA Prisons and Correctional Facilities Design Guide VESDA Prisons and Correctional Facilities Design Guide
Download VESDA-E VEA Commissioning Guide VESDA-E VEA Commissioning Guide
Download VESDA-E Ducts Application Note VESDA-E Ducts Application Note
Download VESDA-E VEA FAQs VESDA-E VEA FAQs
Download VESDA-E FAQs VESDA-E FAQs
Download VESDA-E VEA Product Brochure VESDA-E VEA Product Brochure
Download VESDA-E Product Brochure VESDA-E Product Brochure
Download VESDA-E Retail Facilities Application Brochure VESDA-E Retail Facilities Application Brochure
Download VESDA-E VEA Application in Corcoran State Prison CSS VESDA-E VEA Application in Corcoran State Prison CSS
Download Luxury Home Protected by VEA & XCL Luxury Home Protected by VEA & XCL
Download Social Diagnostics Protects High-Tech Equipment and Specialized Personnel with VESDA-E VEA Success Story Social Diagnostics Protects High-Tech Equipment and Specialized Personnel with VESDA-E VEA Success Story
Download Sonora Behavioral Health Customer Success Story Sonora Behavioral Health Customer Success Story
Download Clemson University Customer Success Story Clemson University Customer Success Story
Download VESDA-E VEA Project Reference List VESDA-E VEA Project Reference List
Download VESDA-E Pocket Guide VESDA-E Pocket Guide
Download VESDA Model Comparison Chart VESDA Model Comparison Chart
