Refrigerated Storage Sampling Kit

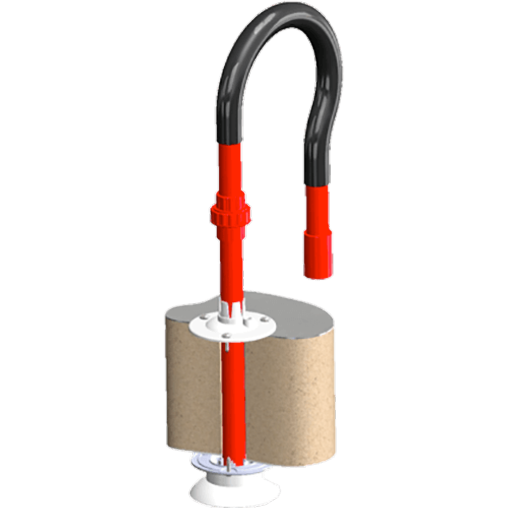

Refrigerated Storage Sampling Kit

The Xtralis Refrigerated Storage Sampling Kit provides a standardised method of smoke sampling for Refrigerated Storage facilities in a considerably improved manner allowing simplified installation with reduced maintenance, thus promoting more reliable and hassle-free operation. The Xtralis Refrigerated Storage Sampling Kit has been designed to replace standard cone-shaped sampling nozzles installed at the ceiling in existing or new Refrigerated Storage facilities. This kit can be installed in the entire facility or combined with standard sampling points if required. The aim here is to reduce direct ice blockage of the sampling points hence this kit is recommended for installation in areas where higher humidity is likely to occur as a result of vehicle and pedestrian traffic (e.g. areas close to doorways or perimeter of the facility).

Model Nos. VSP-860, VSP-860-US
FEATURES
SERVICE & SUPPORT
  • Enables the ASD pipe to be installed, inspected and maintained outside the Refrigerated Storage facility hence enabling fire contractors to work in ambient conditions most of the time
  • Suited for facilities with and without ceiling cavities
  • Eliminates the need for expensive HDPE (high density polyethylene) pipe inside the Refrigerated Storage facility
  • Eliminates the need for costly access equipment hire for on-going service/maintenance
  • Eliminates the need for heat tracing
  • Less prone to blockage due to icing
  • Provides a generally more robust ASD installation for these unique environments
  • Provides considerably improved aesthetics
  • Minimizes the need for “Back Flush” systems
  • Offers all round cost savings

FEATURES
  • Enables the ASD pipe to be installed, inspected and maintained outside the Refrigerated Storage facility hence enabling fire contractors to work in ambient conditions most of the time
  • Suited for facilities with and without ceiling cavities
  • Eliminates the need for expensive HDPE (high density polyethylene) pipe inside the Refrigerated Storage facility
  • Eliminates the need for costly access equipment hire for on-going service/maintenance
  • Eliminates the need for heat tracing
  • Less prone to blockage due to icing
  • Provides a generally more robust ASD installation for these unique environments
  • Provides considerably improved aesthetics
  • Minimizes the need for “Back Flush” systems
  • Offers all round cost savings
SERVICE & SUPPORT

Please visit the Document Library for access to software, manuals, engineering specifications, application notes and other technical support documents.

RESOURCES

Download Xtralis Refrigerated Storage Sampling Kit Data Sheet Xtralis Refrigerated Storage Sampling Kit Data Sheet
Download VESDA Refrigerated Storage Sampling Kit Application Note VESDA Refrigerated Storage Sampling Kit Application Note
Download Xtralis Refrigerated Storage Sampling Kit White Paper Xtralis Refrigerated Storage Sampling Kit White Paper


RELATED PRODUCTS

VESDA VLF
VESDA LaserFocus Aspirating Smoke Detector (VLF)
VESDA VLC
VESDA LaserCompact Aspirating Smoke Detector (VLC)
VESDA VLP
VESDA LaserPlus Aspirating Smoke Detector (VLP)
VESDA Remote Display Module
VESDA Remote Display Module
VESDA-E VEU
VESDA-E VEU Aspirating Smoke Detector (Highest Sensitivity ASD)
VSC
VSC Configuration & Commissioning Software
Product information is subject to change without notice. Product images may include options or accessories not included with the base model.
