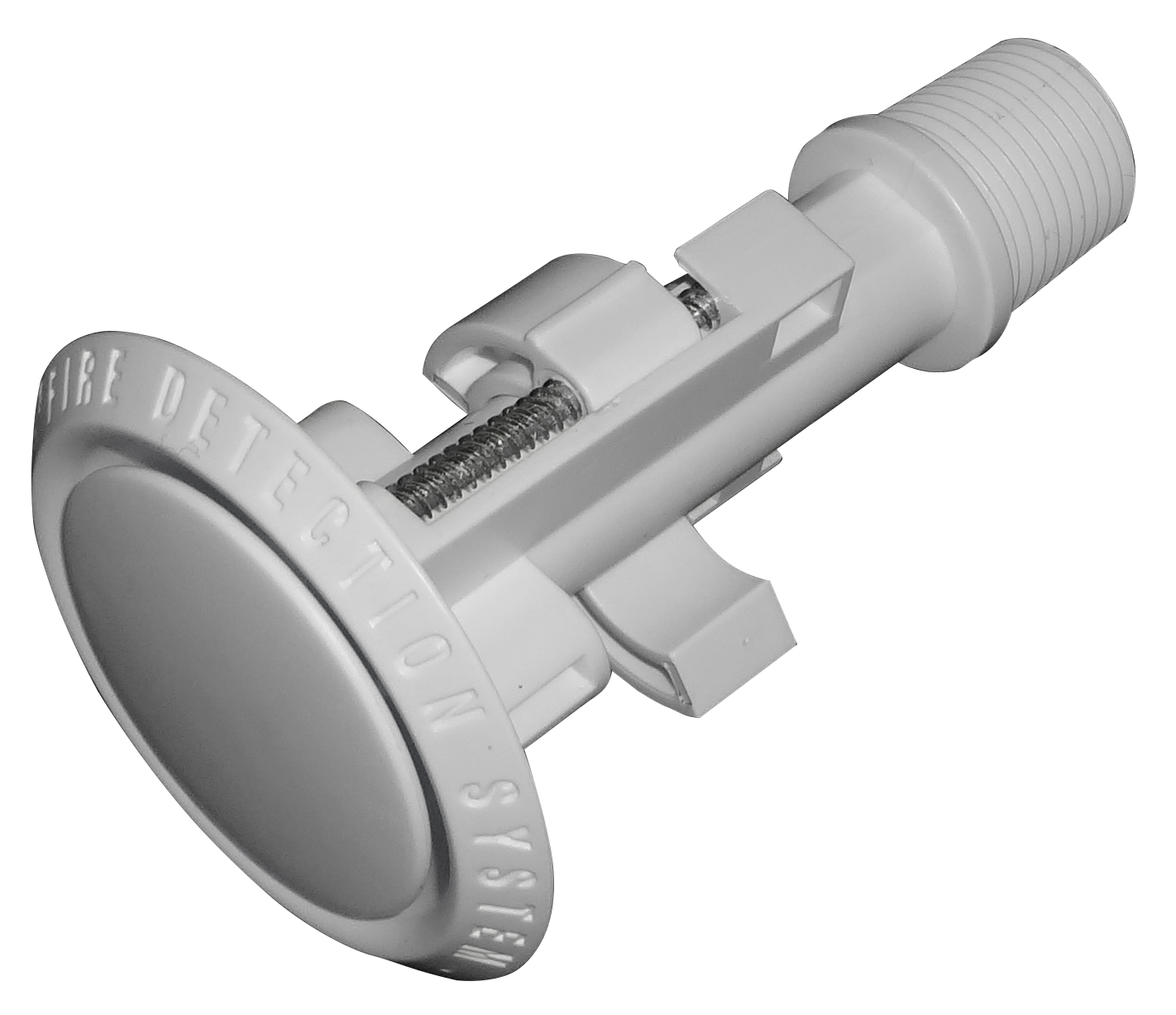

Flush Mount Sampling Point

The Flush Mount Sampling Point (patent pending) provides a functionally and aesthetically improved alternative to the conical sampling point used in Xtralis Aspirating Smoke Detection (ASD) pipe networks.

Model Nos. VSP-877, VSP-878, VSP-877-B, and VSP-877-G
FEATURES
ORDERING INFO
SERVICE & SUPPORT
  • Suitable for all Xtralis Aspirating Smoke Detectors providing a standard solution
  • Unique wing-lock arrangement permits installation from bottom side of ceiling which is ideal for fixed ceilings where access to the other side would be difficult or otherwise impossible
  • Adjustable wing-lock height to accommodate different ceiling panel thicknesses
  • Incorporates text compliant with codes and standards
  • Designed for secure connection through push fit
  • Accommodates several capillary tube sizes including 6 mm, 8 mm, 10 mm and ½” to suit various regional requirements
  • Accommodates an optional Push-in Connect Adaptor for the Americas, ½” capillary tubing for increased robustness
  • Flush mount design provides less obtrusive installation and improved aesthetics
  • Standard 2 mm (5/64”) pilot sampling hole which can be drilled out up to 5 mm (13/64”) as per system design calculations
  • Tapered sampling hole helps resist clogging
  • Snap-fit fascia conceals sampling hole which is easily removable to permit cleaning if required
  • RoHS/REACH compliant

FEATURES
  • Suitable for all Xtralis Aspirating Smoke Detectors providing a standard solution
  • Unique wing-lock arrangement permits installation from bottom side of ceiling which is ideal for fixed ceilings where access to the other side would be difficult or otherwise impossible
  • Adjustable wing-lock height to accommodate different ceiling panel thicknesses
  • Incorporates text compliant with codes and standards
  • Designed for secure connection through push fit
  • Accommodates several capillary tube sizes including 6 mm, 8 mm, 10 mm and ½” to suit various regional requirements
  • Accommodates an optional Push-in Connect Adaptor for the Americas, ½” capillary tubing for increased robustness
  • Flush mount design provides less obtrusive installation and improved aesthetics
  • Standard 2 mm (5/64”) pilot sampling hole which can be drilled out up to 5 mm (13/64”) as per system design calculations
  • Tapered sampling hole helps resist clogging
  • Snap-fit fascia conceals sampling hole which is easily removable to permit cleaning if required
  • RoHS/REACH compliant
ORDERING INFO
  • Flush Mount Sampling Point - Part Number VSP-877
  • Push-in Connect Adaptor Kit for ½” capillary tubing - Part Number VSP-878
SERVICE & SUPPORT

Please visit the Document Library for access to software, manuals, engineering specifications, application notes and other technical support documents.
