VESDA Power Supply

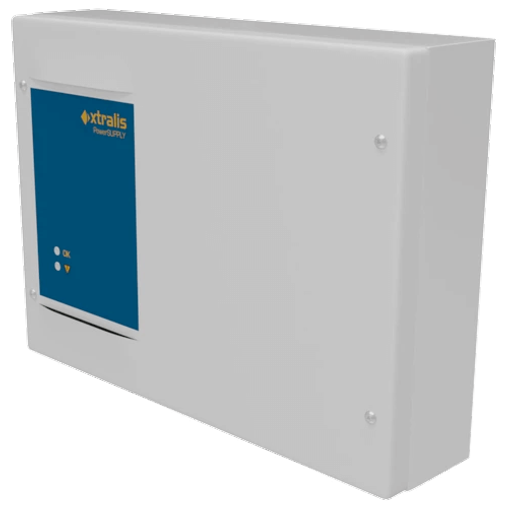

VESDA Power Supply

The VESDA Power Supply is capable of providing operating power, including battery backup, for the entire line of VESDA by Xtralis Aspirating Smoke Detectors. The VESDA Power Supply has been designed to power a single unit to multiple units depending on application needs. It provides 24 volt operating power to the VESDA system as well as a battery charger function that supervises and maintains the standby batteries.

FEATURES
CERTIFICATIONS
SERVICE & SUPPORT

Models VPS-100US and VPS300US:

  • 120 VAC (+10% / -15%);  60Hz; 1.4 amp max.
  • 1.5 amp continuous supply current at 27.6VDC
  • Filtered and electronically regulated output
  • AC fail supervision
  • Low AC (brown-out) supervision
  • Battery supervision
  • Built-in charger for sealed lead acid or gel-type batteries
  • Automatic switch over to standby battery when AC fails
  • AC input LED indicator

Models: VPS-215, VPS-220 7 VPS-250

  • EN54-4 Compatible
  • Available in three types: VLP 2A, VLC 1.5A, Multiple 5A
  • Temperature compensated charging to maximize battery life
  • Designed to blend in with VESDA detectors
  • Knockouts designed to line up with VESDA units
  • Multiple battery back-up configurations
  • LED indication on 2A and 5A units
  • Relay outputs for connection to the VESDA general-purpose input

FEATURES

Models VPS-100US and VPS300US:

  • 120 VAC (+10% / -15%);  60Hz; 1.4 amp max.
  • 1.5 amp continuous supply current at 27.6VDC
  • Filtered and electronically regulated output
  • AC fail supervision
  • Low AC (brown-out) supervision
  • Battery supervision
  • Built-in charger for sealed lead acid or gel-type batteries
  • Automatic switch over to standby battery when AC fails
  • AC input LED indicator

Models: VPS-215, VPS-220 7 VPS-250

  • EN54-4 Compatible
  • Available in three types: VLP 2A, VLC 1.5A, Multiple 5A
  • Temperature compensated charging to maximize battery life
  • Designed to blend in with VESDA detectors
  • Knockouts designed to line up with VESDA units
  • Multiple battery back-up configurations
  • LED indication on 2A and 5A units
  • Relay outputs for connection to the VESDA general-purpose input
CERTIFICATIONS

Models VPS-100US and VPS300US:

  • UL 1481 listed
  • ULC
  • FM (for VPS-100US)
  • CSFM
SERVICE & SUPPORT

Please visit the Document Library for access to software, manuals, engineering specifications, application notes and other technical support documents.

RESOURCES

Download Xtralis Power Supply VPS-250-E5 Data Sheet Xtralis Power Supply VPS-250-E5 Data Sheet
Download Xtralis Power Supply Units Style E5 Data Sheet Xtralis Power Supply Units Style E5 Data Sheet
Download VESDA-E Power Supplies - STX Variants (EU) Data Sheet VESDA-E Power Supplies - STX Variants (EU) Data Sheet
Download VESDA PSU VSP-725 Data Sheet VESDA PSU VSP-725 Data Sheet
Download VESDA Power Supply (VPS-100US & VPS-300US) Data Sheet VESDA Power Supply (VPS-100US & VPS-300US) Data Sheet


Product information is subject to change without notice. Product images may include options or accessories not included with the base model.
